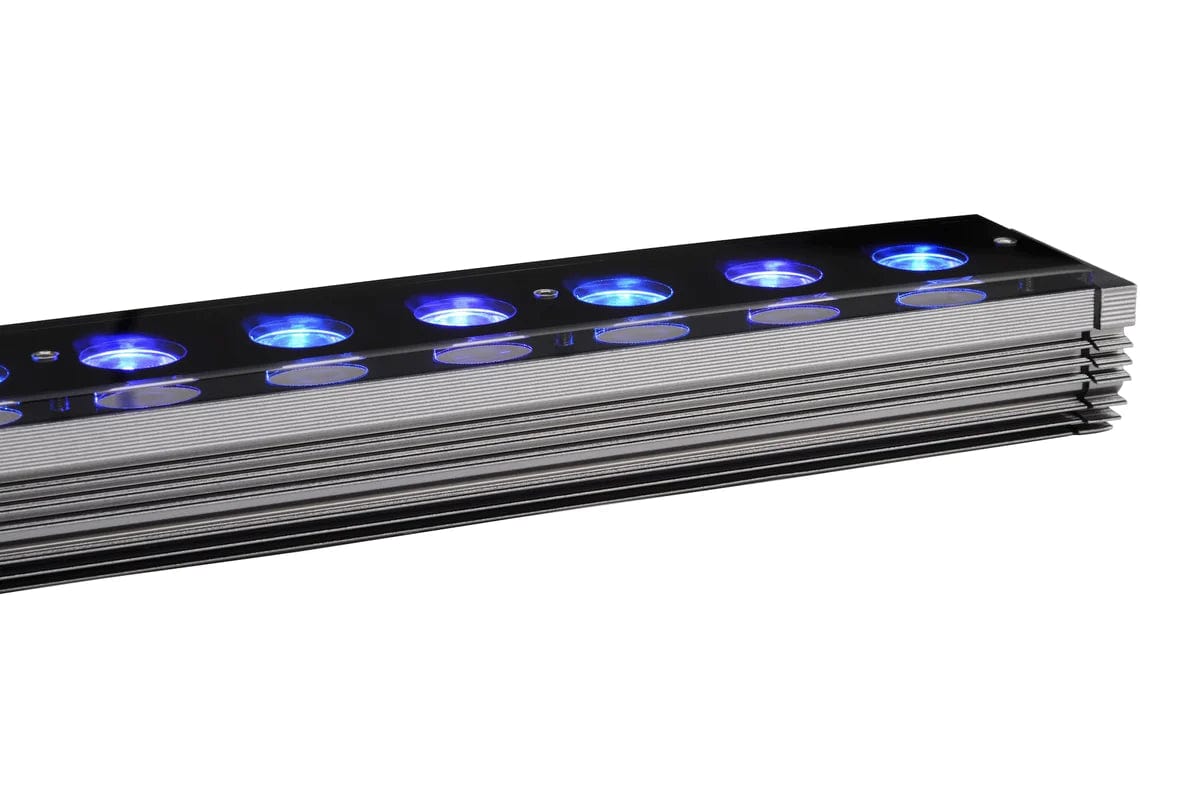

OR3 Blue Sky 150 / 120 / 90 / 60 reef Aquarium LED Bar
Orphek has been over the years progressively introducing new benefits and fine tuning to its reef aquarium LED lighting bars.
This third generation of Orphek Reef Aquarium LED Bars - the OR3 Blue Sky - is a mind-blowing product that comes with a number of significant improvements and valuable changes:
-
EXTREME CORAL FLUORESCENCE
-
WIDER BLUE/CYAN SPECTRUM (450-470nm)
-
NEW CUSTOMISED 5W WIDE RANGE DUAL CHIP POWER LEDS (same as the Atlantik iCon!)
-
A LED BAR MADE OF HIGH QUALITY ALUMINIUM ALLOY AND 8MM ACRYLIC TOP.
-
GREATEST PAR LONGEVITY OF THE MARKET.
-

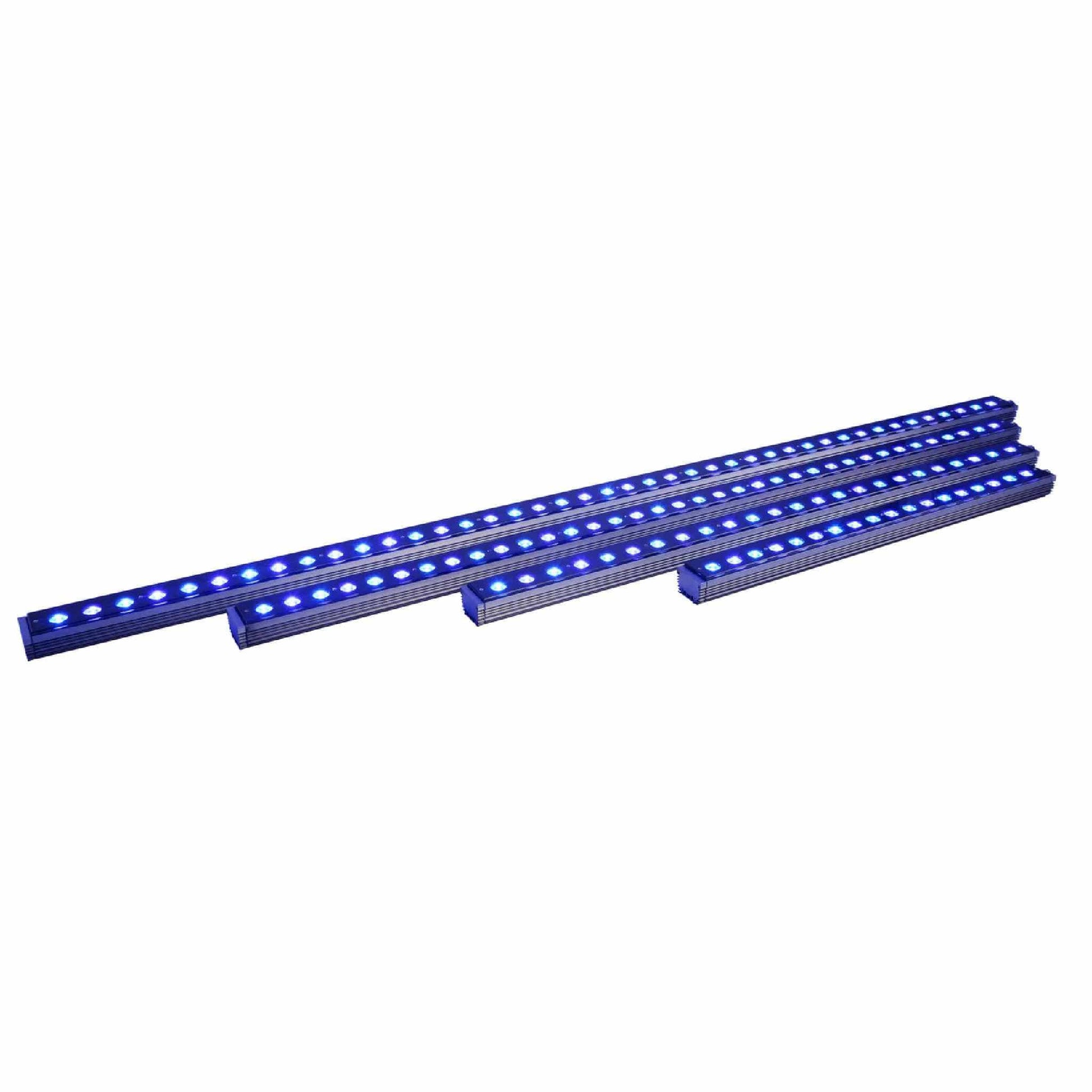

OUTSTANDING VERSATILITY: 4 DIFFERENT SIZES TO MEET ANY NEEDED LIGHTING LAYOUT AND COVERAGE.
THIS IS WHY OR3 BLUE SKY IS A FEVER AMONG REEFERS:
They are slim, they are resistant, versatile and beautiful to display!
WHY YOU WILL ALSO FALL IN LOVE WITH OUR OR3 LED BARS:

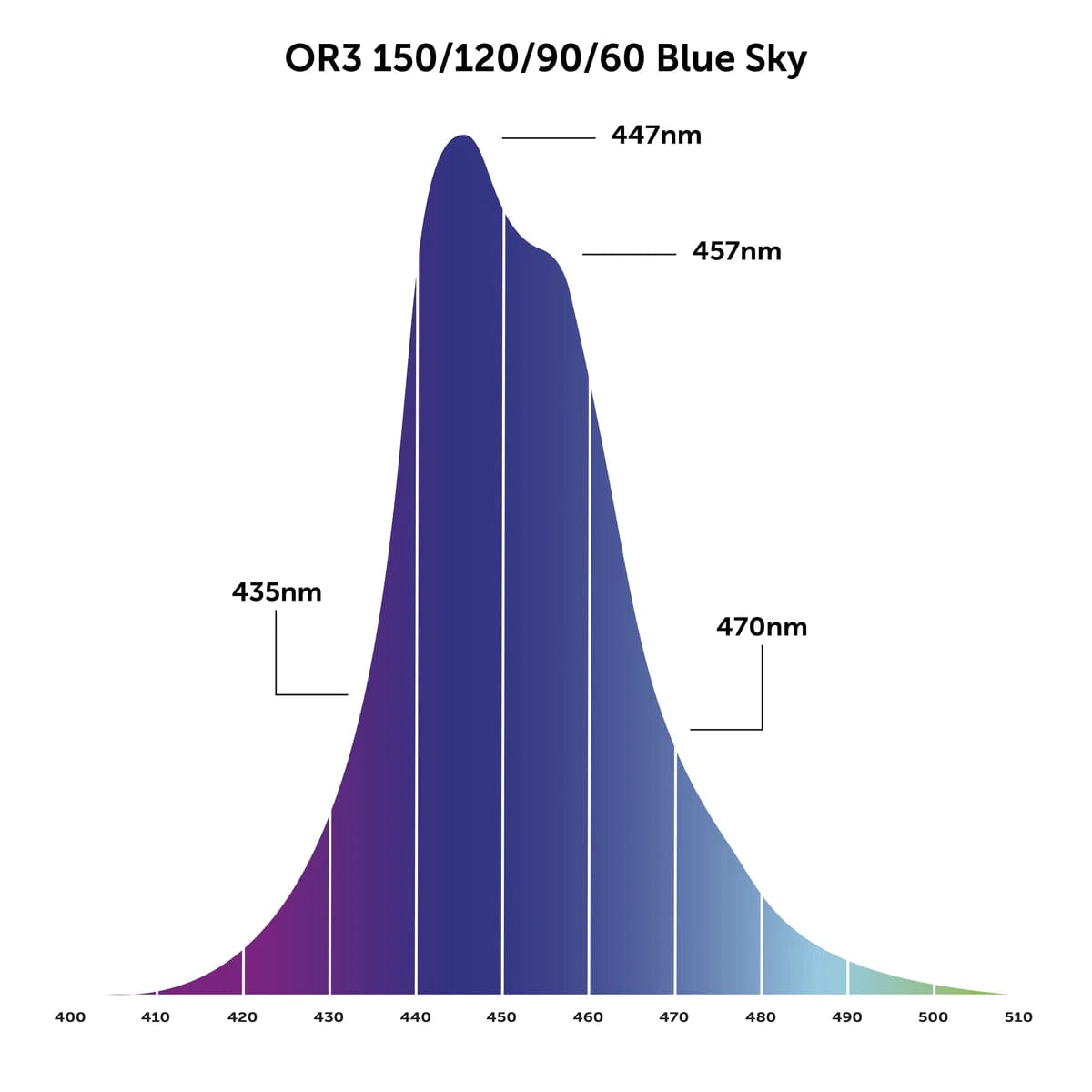

THE SPECTRUM:
THE LEDS:
OR3 Blue Sky LED Bars excel in performance because Orphek uses only best LEDs in the market! And now you are getting the same LEDs we are offering in our Atlantik iCon fixtures!
It means you are getting new:
LONGER LIFE SPAN:
THE MOUNTING OPTIONS:
-

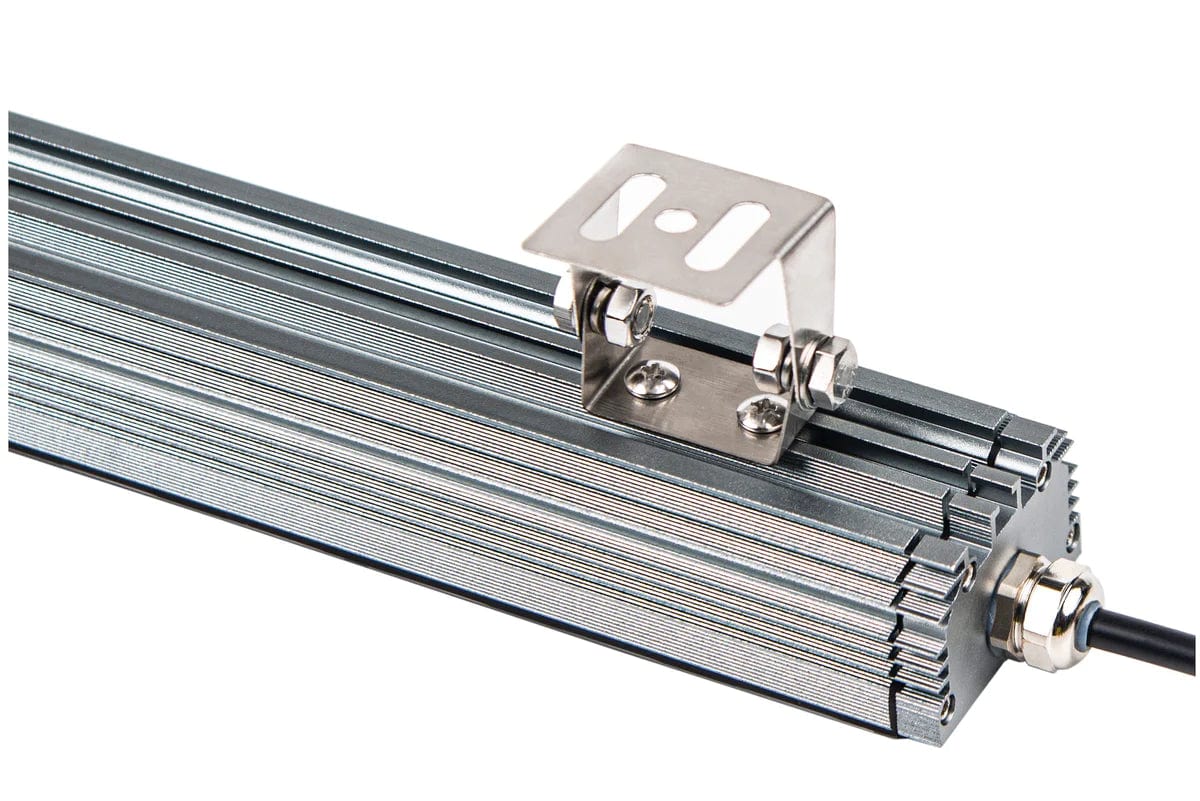

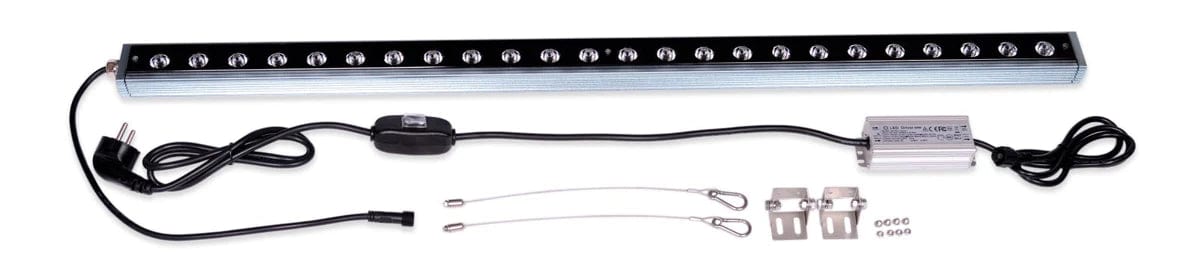

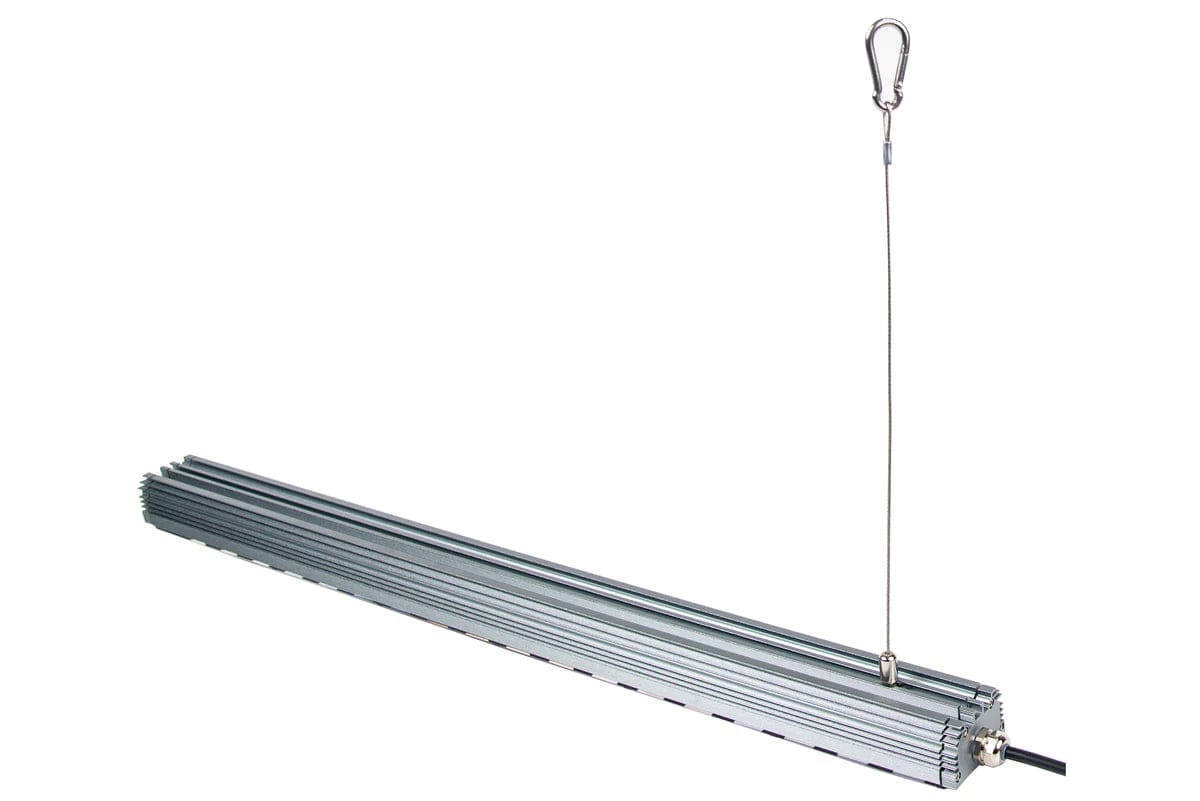

Your OR3 BLUE SKY comes with a hanging kit with: 2 mounting brackets and 2 wire hanging cables assembly - FREE OF CHARGE
-
You can assemble (max of 7 units) OR3 LED Bars together with Orphek Universal Fixing bracket - NOT INCLUDED
What else you are getting with no extra cost!
FEATURES

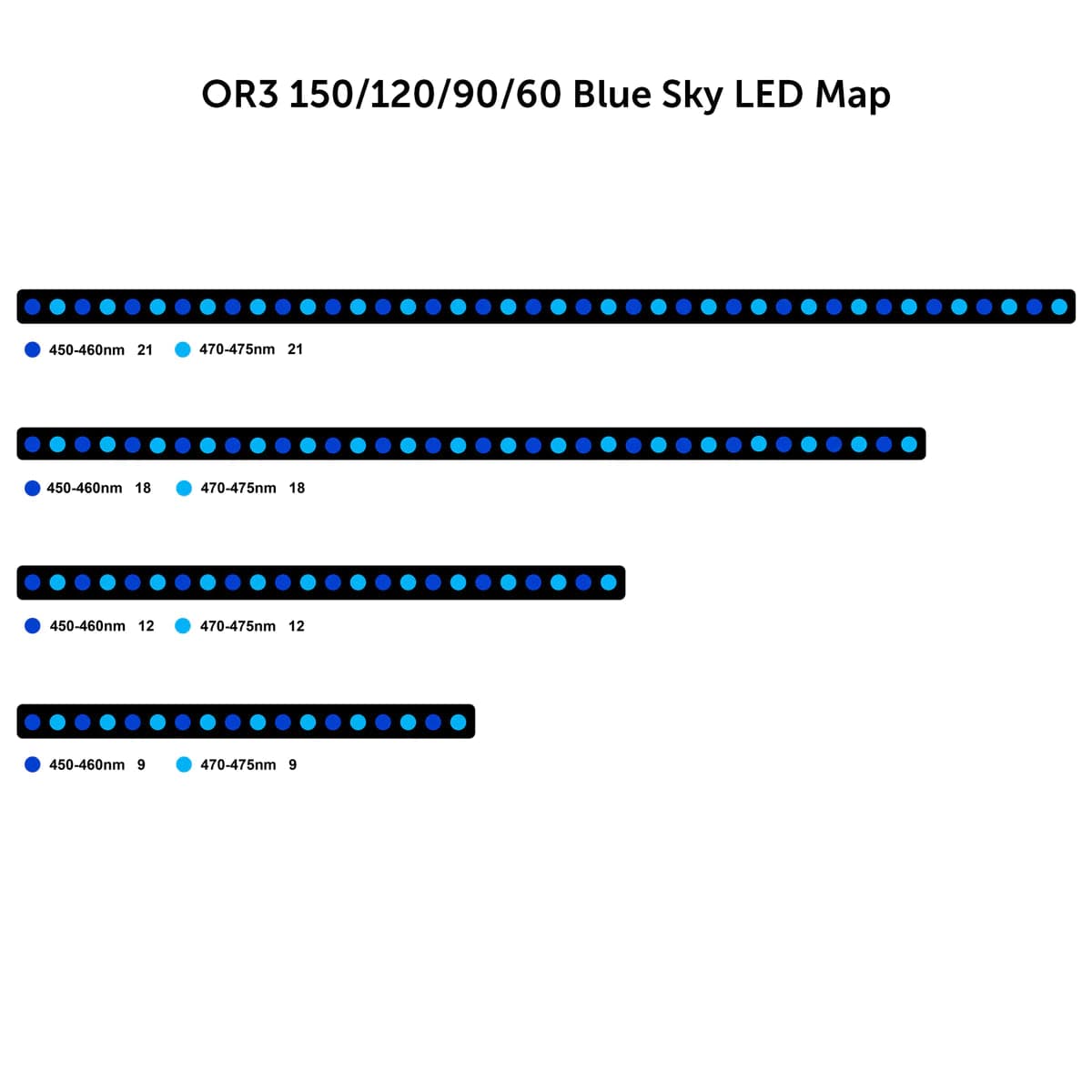

QUANTITY OF LEDS & SPECTRUM
|
|
LEDS (QUANTITY/SPECTRUM)
|
|
OR3 60
|
9 LEDS - 450 - 460nm/ 9 LEDS 470 - 475nm |
|
OR3 90
|
12 LEDs - 450 - 460nm/ 12 LEDS 470 - 475nm |
|
OR3 120
|
18 LEDs 450 - 470nm/ 18 LEDS 470 - 475nm
|
|
OR3 150
|
21 LEDs 450 - 470nm/ 21 LEDS 470 - 475nm |
WEIGHT
|
|
NET WEIGHT
(KG/LBS)
|
GROSS WEIGHT
(KG/LBS)
|
|
OR3 60
|
1.20kg / 2.64lbs
|
2.5kg / 5.51 lbs
|
|
OR3 90
|
1.65kg / 3.68lbs
|
3.0kg / 6.61 lbs
|
|
OR3 120
|
2.30kg / 5.07lbs
|
3.5kg / 7.71 lbs
|
|
OR3 150
|
3.27kg / 7.20lbs
|
4.5kg / 9.92 lbs
|
SIZE & DIMENSIONS
|
|
SIZE (CM/INCHES)
|
DIMENSIONS L/W/H (CM/INCHES)
|
|
OR3 60
|
60cm / 24”
|
63.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H )
25” ( L ) X 1.97” ( W ) X 1.4” ( H )
|
|
OR3 90
|
90cm / 35”
|
93.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H )
36.8” ( L ) X 1.97” ( W ) X 1.4” ( H )
|
|
OR3 120
|
120cm / 48”
|
123.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H )
48.7” ( L ) X 1.97” ( W ) X 1.4” ( H )
|
|
OR3 150
|
150cm / 60”
|
153.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H )
60.4” ( L ) X 1.97” ( W ) X 1.4” ( H )
|
ELECTRIC PARAMETER
|
|
POWER CONSUMPTION
|
INPUT VOLTAGE
|
OUTPUT CURRENT
|
POWER FACTOR
|
FREQUENCY
|
|
OR3 60
|
30W
|
DC30-65V
|
450mA
|
>90%
|
50-60 Hz
|
|
OR3 90
|
40W
|
DC 40-82V
|
450mA
|
>90%
|
50-60 Hz
|
|
OR3 120
|
60W
|
DC 30-65V
|
900mA
|
>90%
|
50-60 Hz
|
|
OR3 150
|
75W
|
DC 35-71V
|
1050mA
|
>90%
|
50-60 Hz
|
