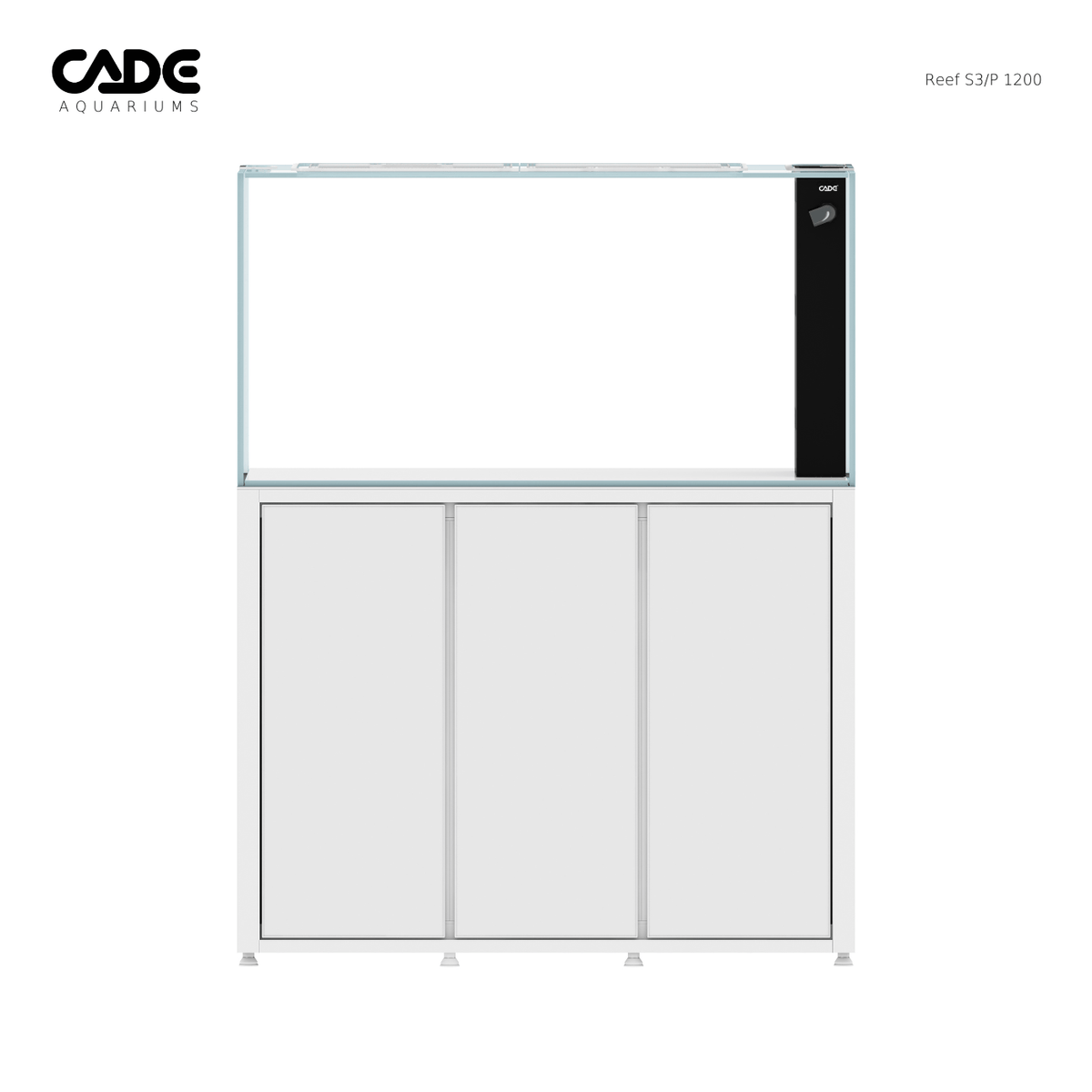

Reef S3/P 1200 - CADE

The CADE Reef S3/P is our premium range of customisable, sump filtered saltwater Peninsula aquariums designed specifically for the advanced reef aquarist. The Reef S3/P aims to redefine reef aquaria combining advanced features, cutting edge functionality and premium construction materials to create a system that assembles with effortless simplicity.

SPECIAL ORDER ONLY — CONTACT US FOR AVAILABILITY AND SHIPPING COST. CADE aquariums ship to NSW only.

The Reef S3/P series has been expertly crafted to enable the reef aquarist to build a truly personalised reef aquarium system incorporating industry leading filtration design for unparalleled life support versatility. In its entirety the S3/P range combines functional design and unique sophistication that both compliments contemporary home decor whilst fulfilling all of your reef keeping requirements.

Key Features

Tank

• Tank dimensions: 1200x700x610mm
• Capacity (inhabitable): 504L / 133 gal
• System capacity (total): 571L / 150 gal
• Glass type: 12mm Opti-Clear low iron
• Euro braced (10mm)
• Polycarbonate Jump Guard (pre-assembled)
• Light mount provision: side mount
• Jet black slimline weir with three inlet vents (surface, mid, low)
• Pre-installed tank plumbing out of the box
• White tank base for bare-bottom applications
• Laser etched logo

Cabinet

• Dimensions: 1200×700×900mm
• Aluminium frame and doors
• 100% waterproof and corrosion-proof
• Cabinet pre-assembled with sump installed
• Device display panel doors behind both dry space doors with integrated cable / power pack management boxes
• Power boards with switches (16 sockets)
• Dry space dimensions (LxWxH): 342x445x580mm
• End-side door for sump access
• Pre-installed foam tank mat
• Adjustable levelling feet
• Accessories / dosing pump shelf

Sump & Filtration

• Tinted glass sump
• Roller mat ready (no filter socks)
• Triton ready 'Triton Tray' (also usable as a frag rack)
• Protein skimmer / reactor chamber
• Bio/chemical media chamber with removable media baskets
• Return pump chamber
• Reactor/chiller feed outlets (17mm external dia): x3
• ATO reservoir 18.8L / 4.9gal

Plumbing

• Pre-fabricated quick-fit plumbing system with tank-side plumbing pre-installed
• Full Flowcolour plumbing system finished in blue & grey
• Dual down-flow pipes (main + emergency) with fine-tune gate valve
• Concealed dual returns with non-return valves
• Silent operation

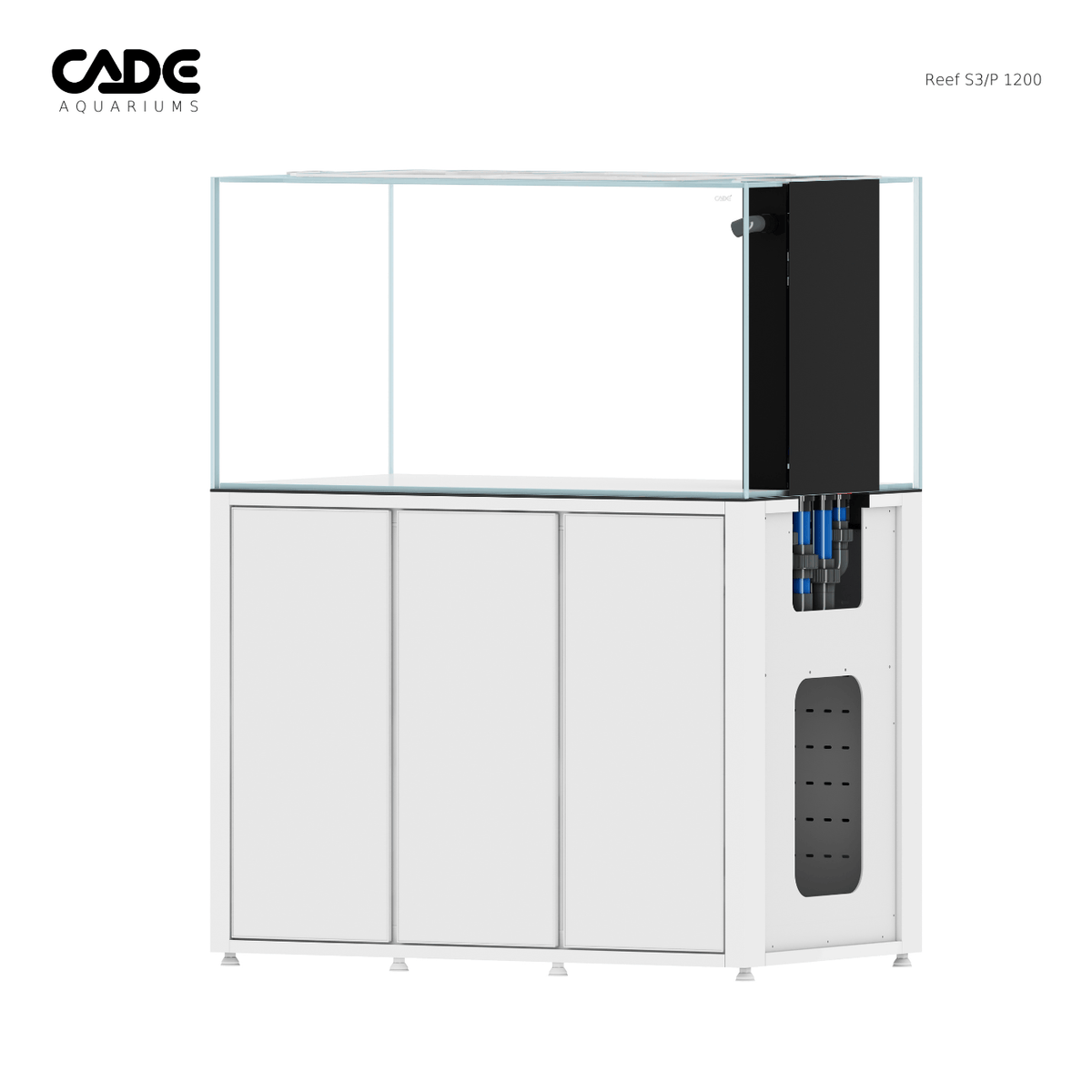

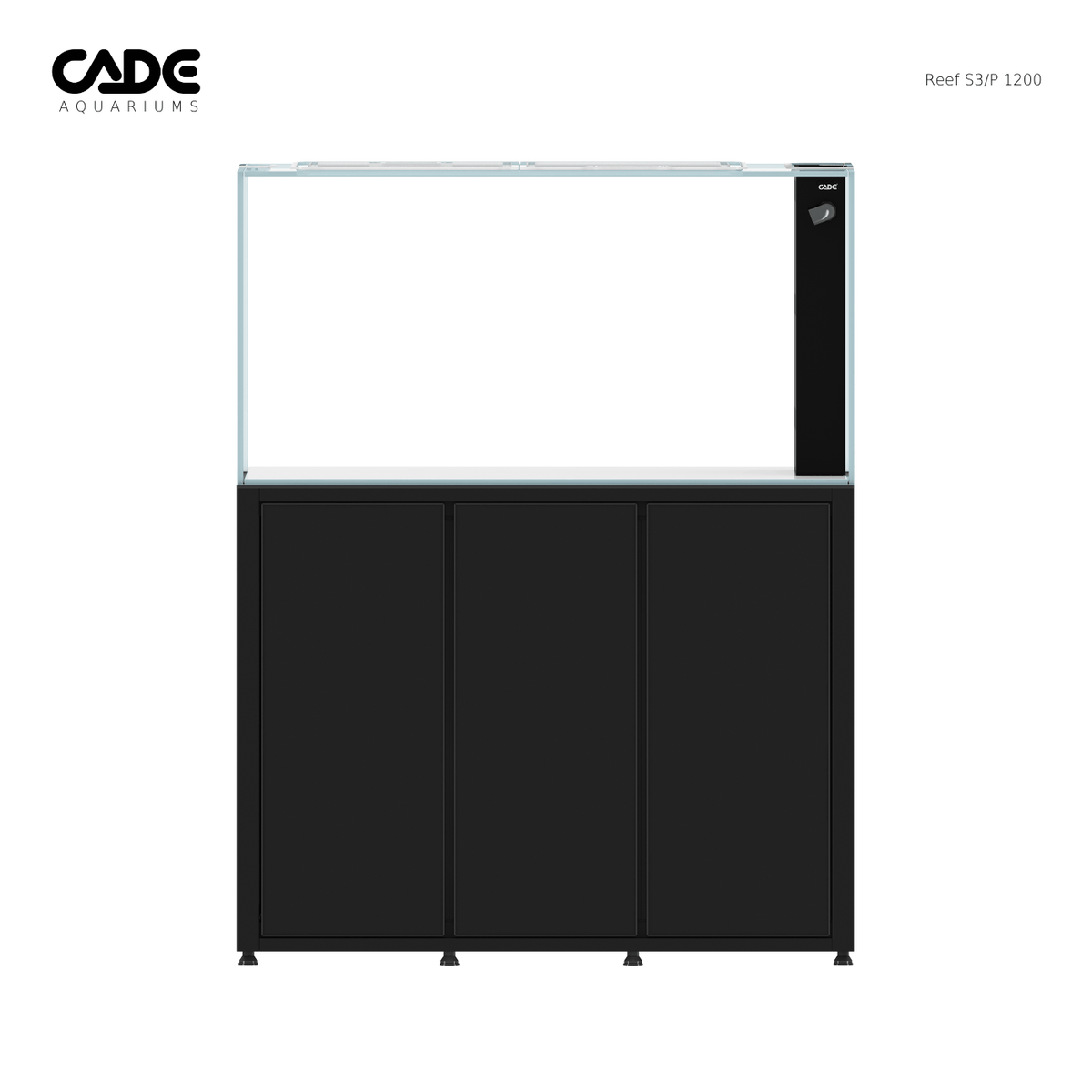

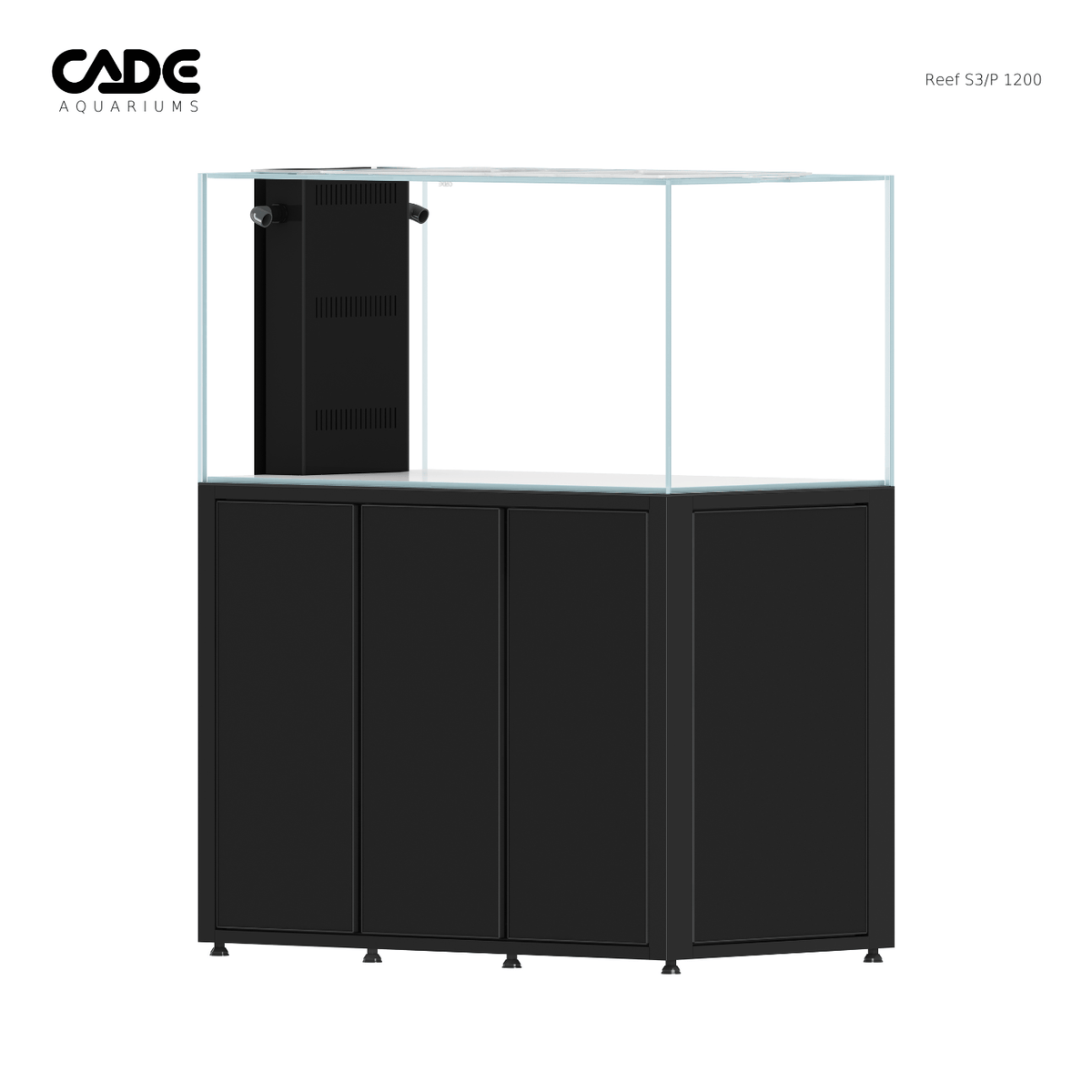

The CADE Reef S3/P is a Euro-braced, extra-wide rimless tank made from ultra-clear Opti-Clear glass with precision German Wacker silicone and a laser-etched logo for authenticity. The Eurobrace is complemented with polycarbonate lids and provision for light mounts in the bracing. The wide-body footprint enhances aquascaping depth and coral growth visibility from all angles. The slimline glass weir features triple-level intakes (surface, mid, low) for superior debris capture and emergency backup. Dual drainpipes (main + emergency) ensure silent operation, with tank-side plumbing pre-installed via a base plate system for effortless screw-fit setup. A white laminated base suits bare-bottom or shallow sand beds.

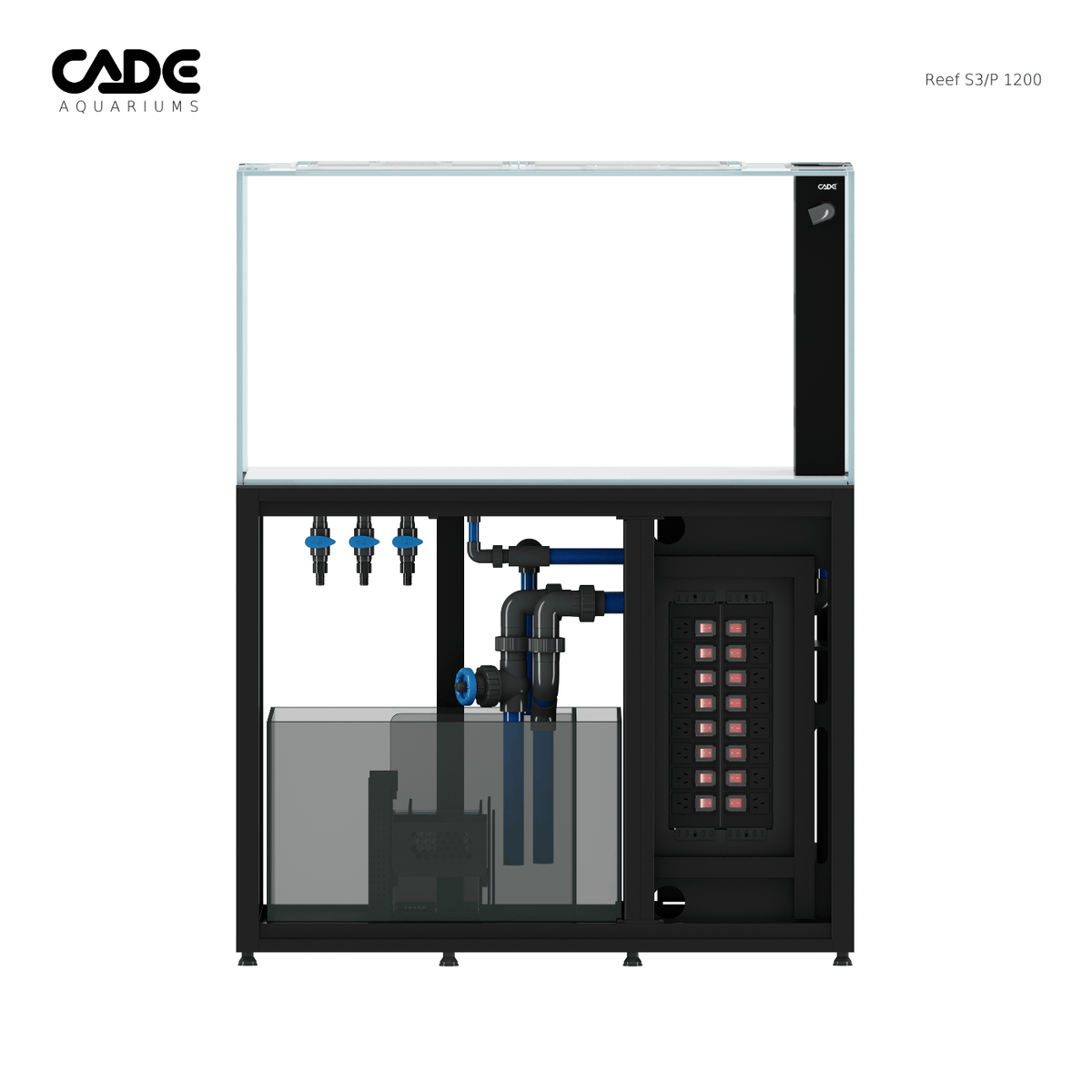

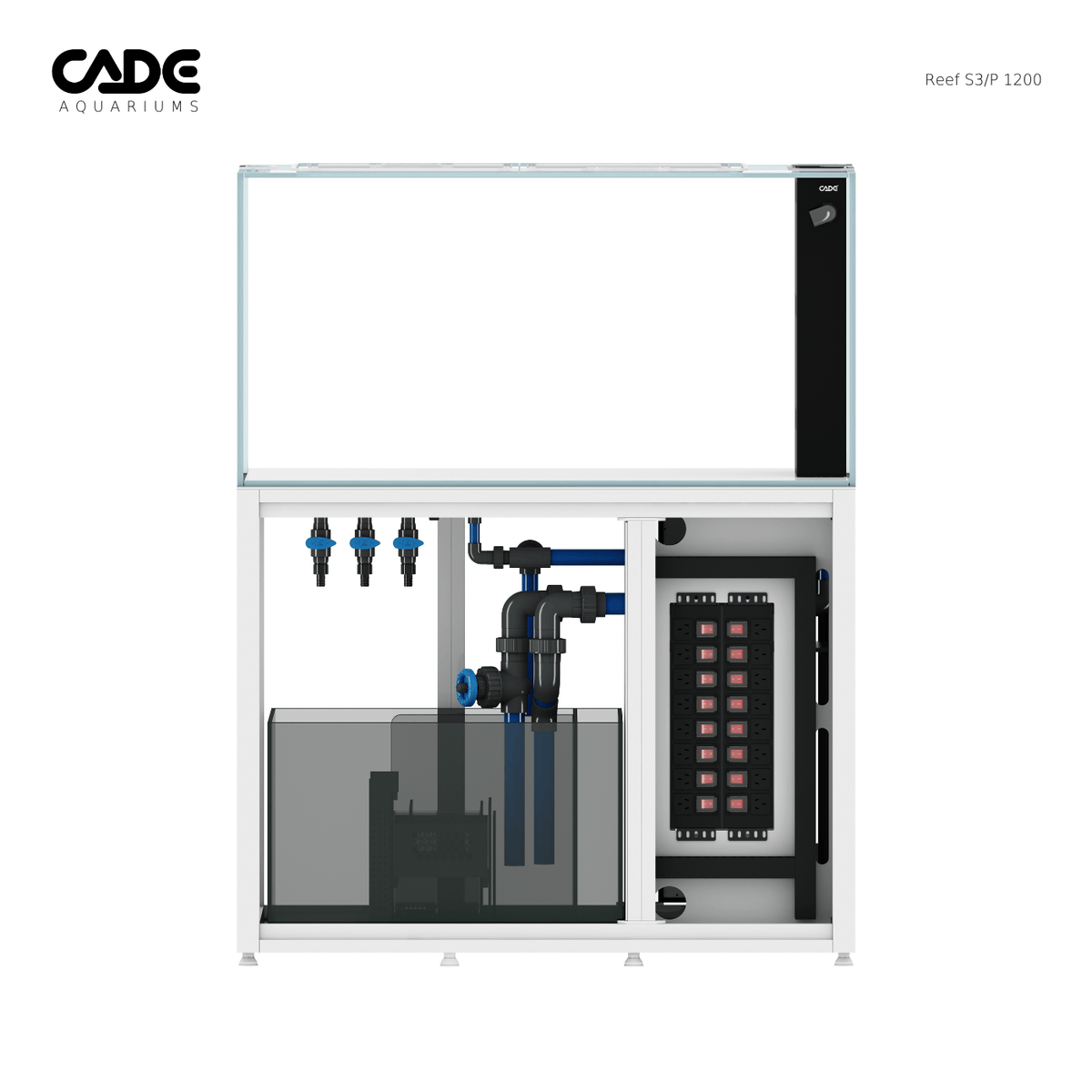

Purpose-built and 900mm tall, CADE S3/P cabinets arrive pre-assembled with sump installed — place the tank and connect plumbing. Built from 100% waterproof, corrosion-resistant materials with concealed magnetic door latches and a powder-coated finish. Dedicated controller panel doors with internal cable boxes, dual power boards with switches, and large dry ventilated zones for chillers and dosing.

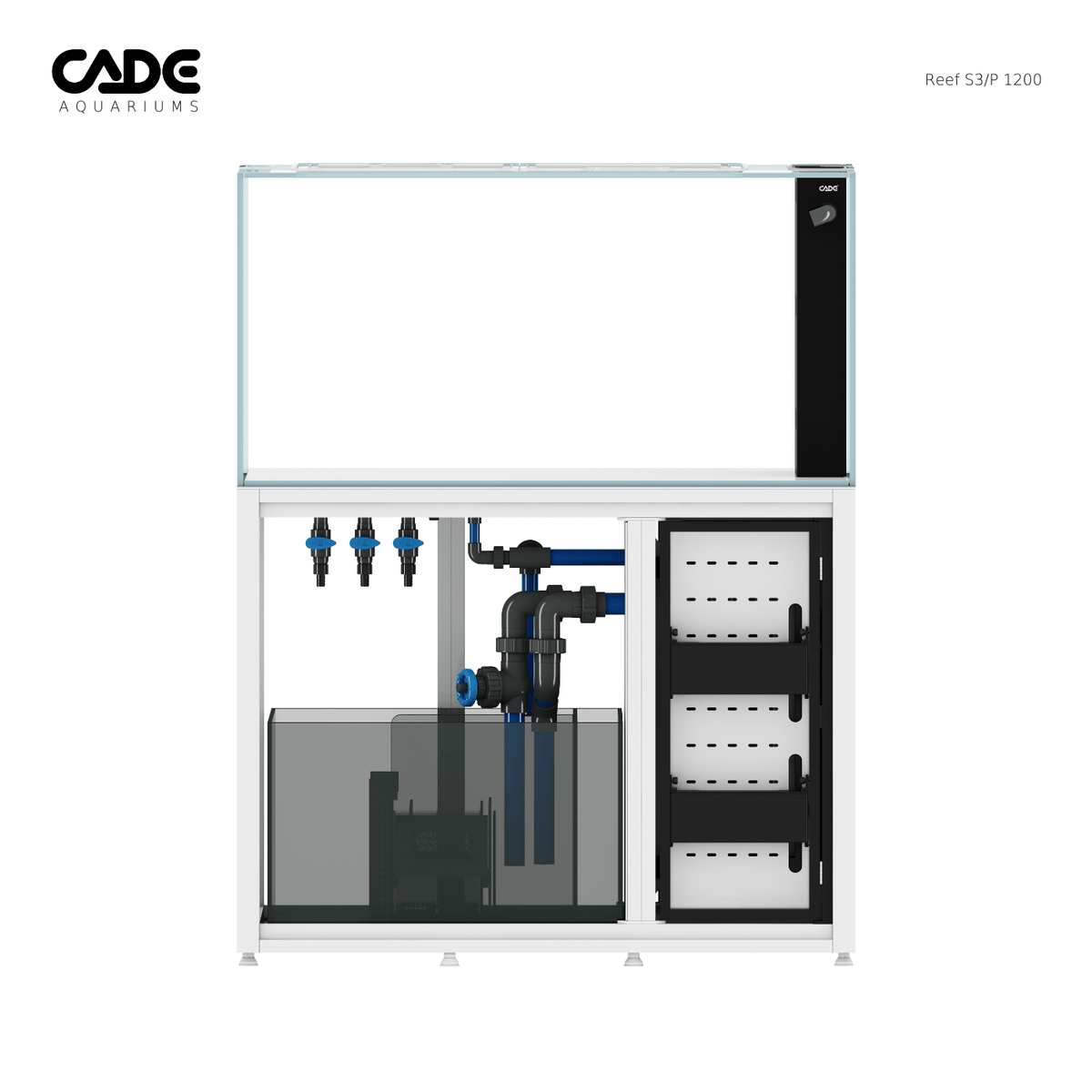

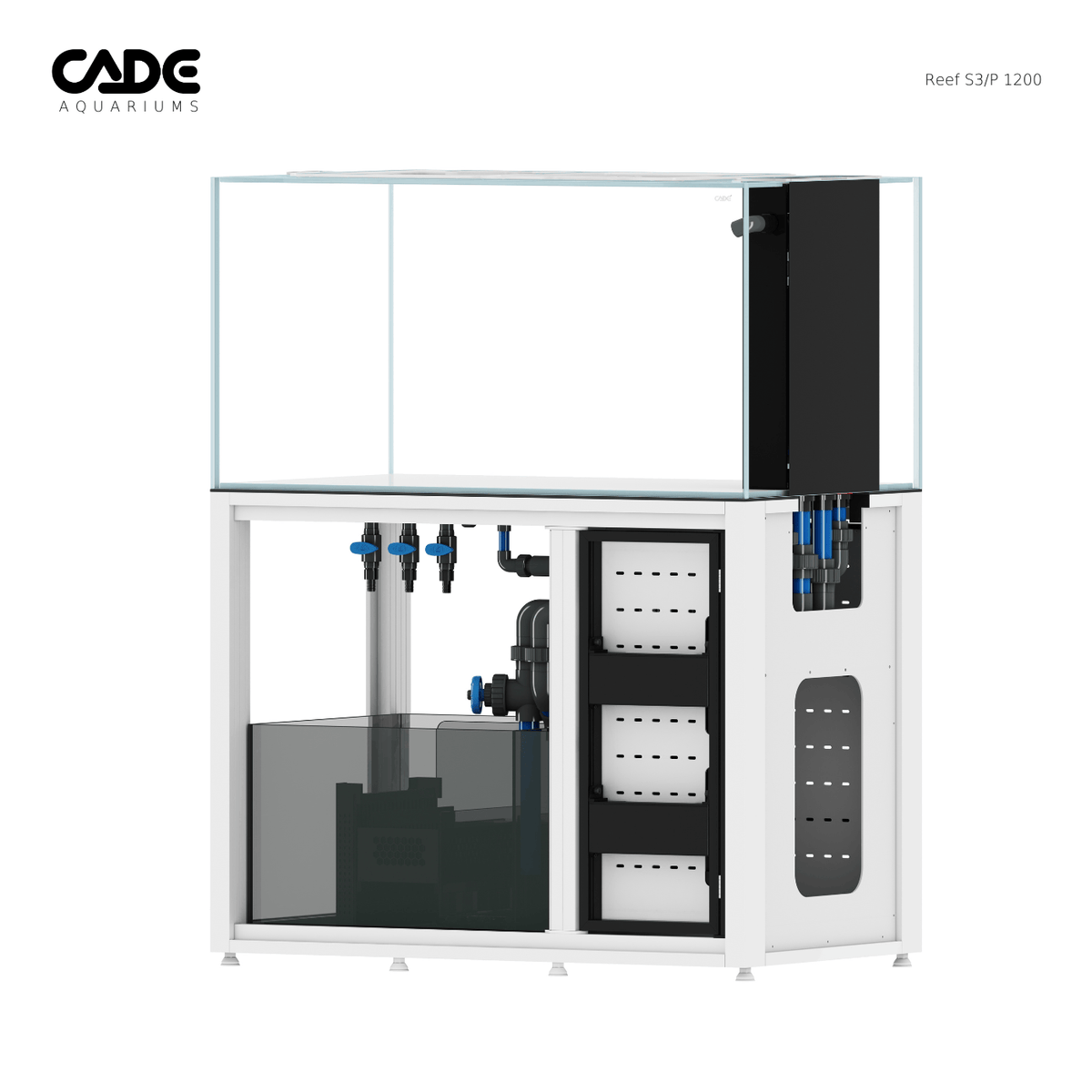

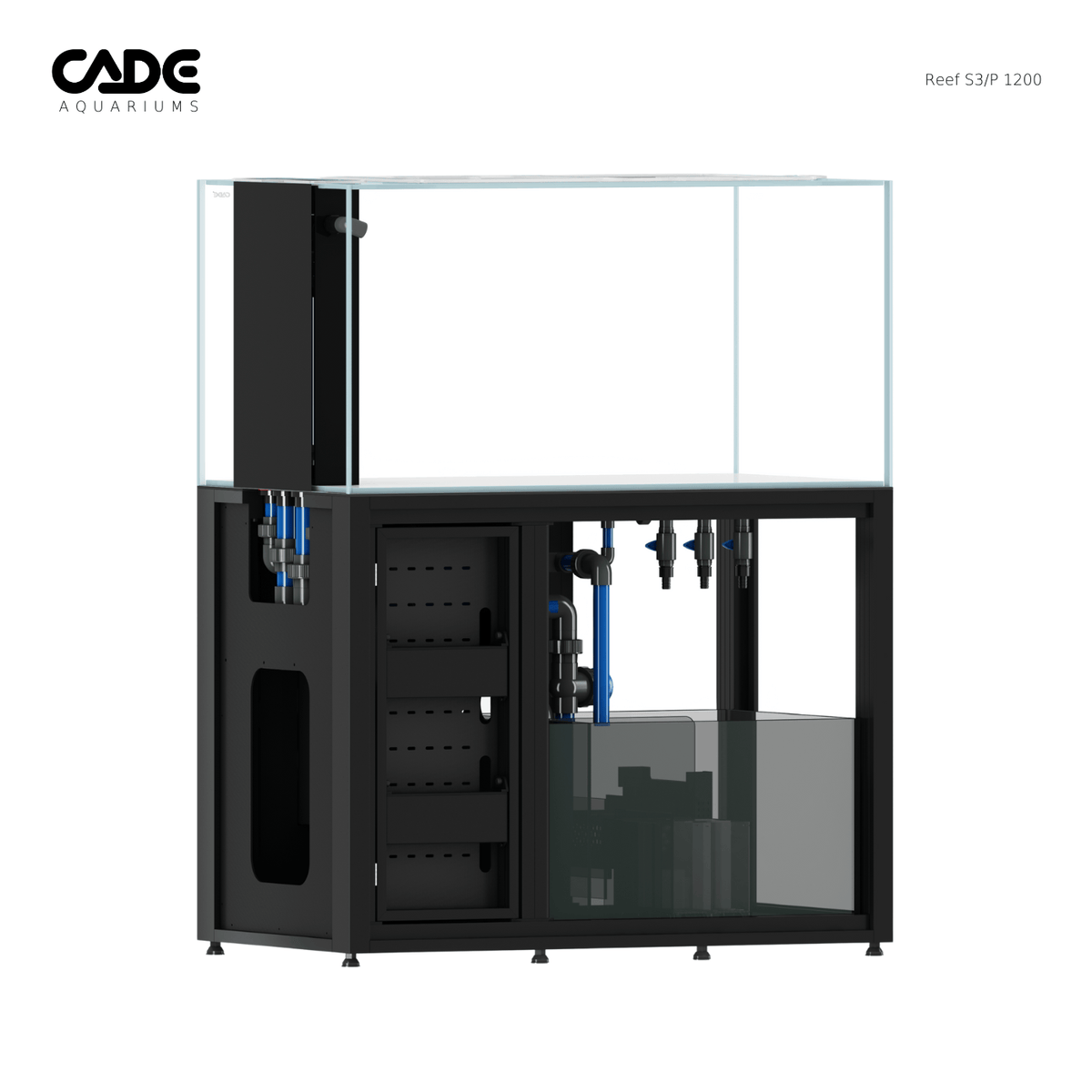

The S3/P sump uses a raceway-style flow layout, is roller-mat ready, and includes a Triton Algae Tray (also usable as a frag rack). Media baskets in the biological chamber reduce the need for separate reactors. An integrated ATO reservoir is included (ATO device not supplied).

CADE’s S3/P plumbing uses pre-installed, screw-fit Sanking Flowcolour pipes connected via a tank base plate for fast setup, with dual returns neatly hidden in the weir and feed taps for chillers or reactors.

Why Choose the CADE Reef S3/P?

The S3/P Series is inspired by aquarists and crafted for corals — a peninsula (three-sided view) foundation with advanced device and cable management, a triple-intake weir, roller-mat ready sump, quick-fit plumbing, and a 100% waterproof all-aluminium cabinet.
